Pool and Hot Tub Water Heater Specifications:

 Small Camp FireMed BlazeLarge Inferno
BTU/hour (Kw/hr) 35,000 (10 KW/hr) 55,000 (16 KW/hr) 105,000 (30 KW/hr)
Dimensions 670x430 (26.5" x 17") 750x480 (29.5"x19") 950x600 (37.5"x23.5")
Fire Box (length) 630 (24.8") 710 (27.9")  910 (35.8")
Thickness 2-3 mm 2-3 mm  2-3 mm
Material AISI 430 Stainless AISI 430 Stainless  AISI 430 Stainless
Chimney Size 5" 5"  5"
Pipe Connections 1 1/2" 1 1/2" 1 1/2"
Max operating Pressure 11 PSI 11 PSI 11 PSI

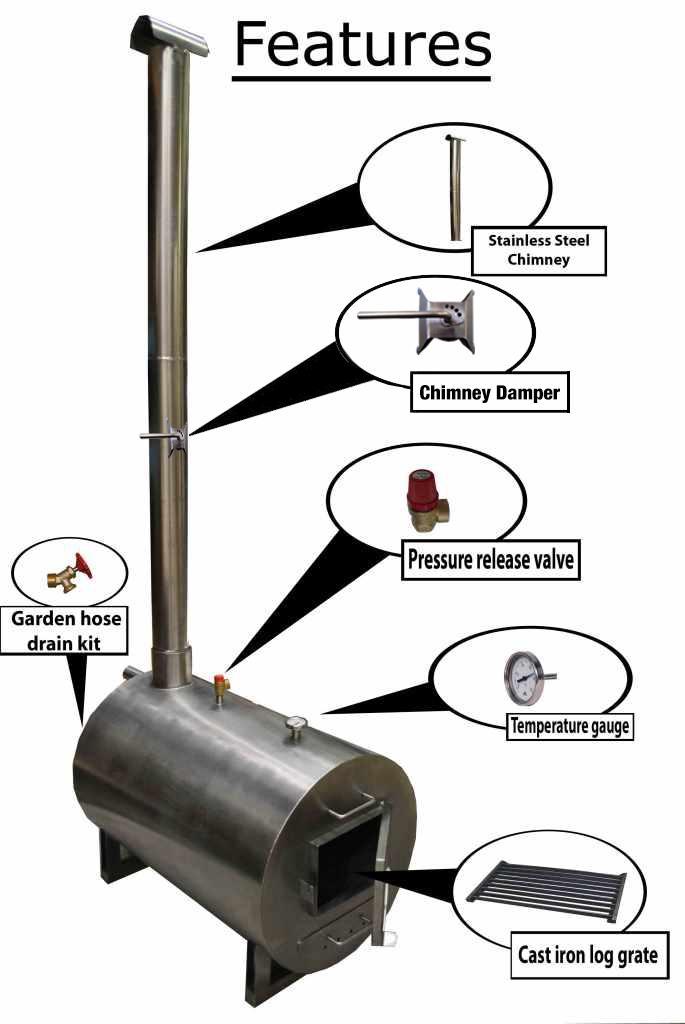

Features:

wood fired pool heater specs

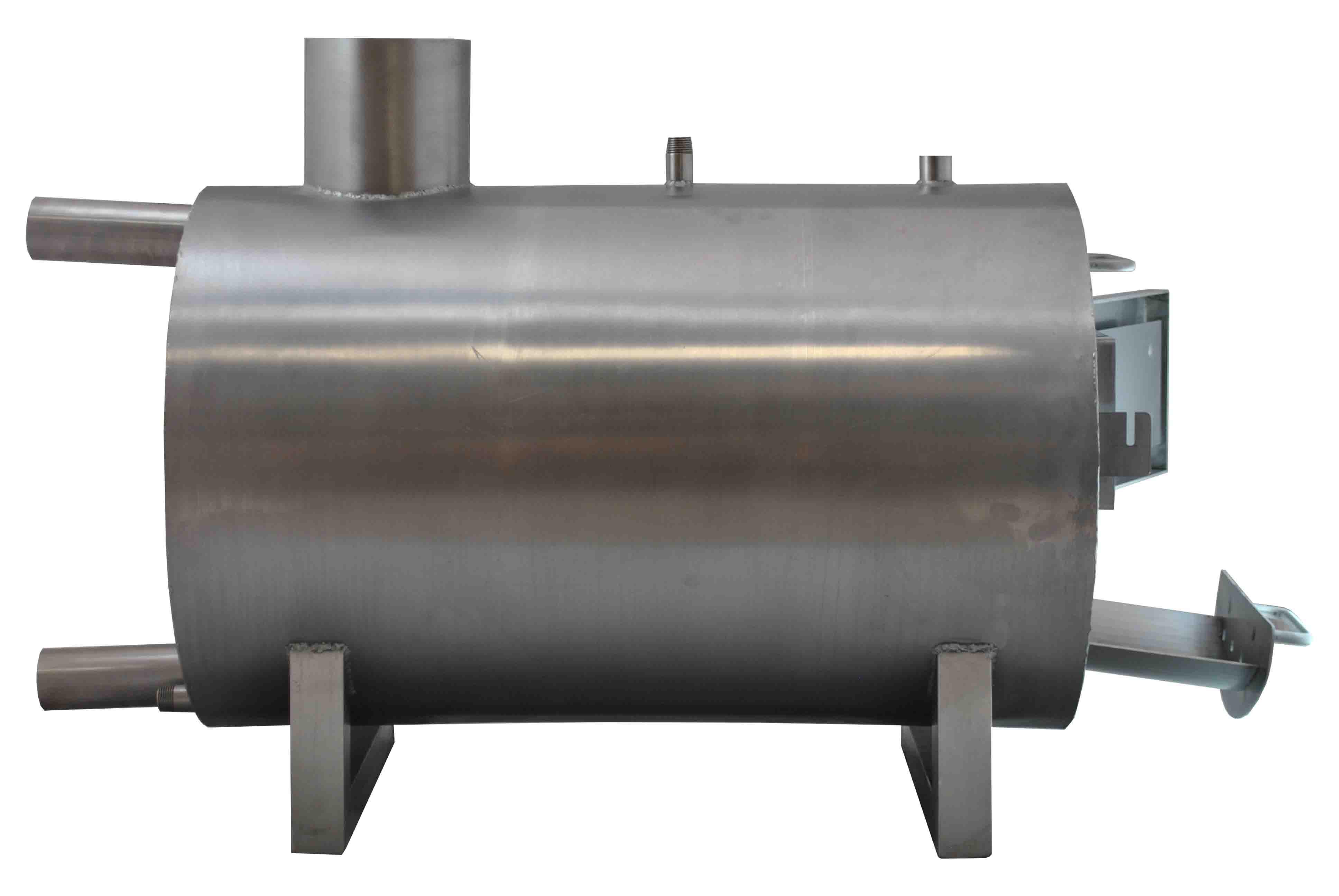

Side View

Side View

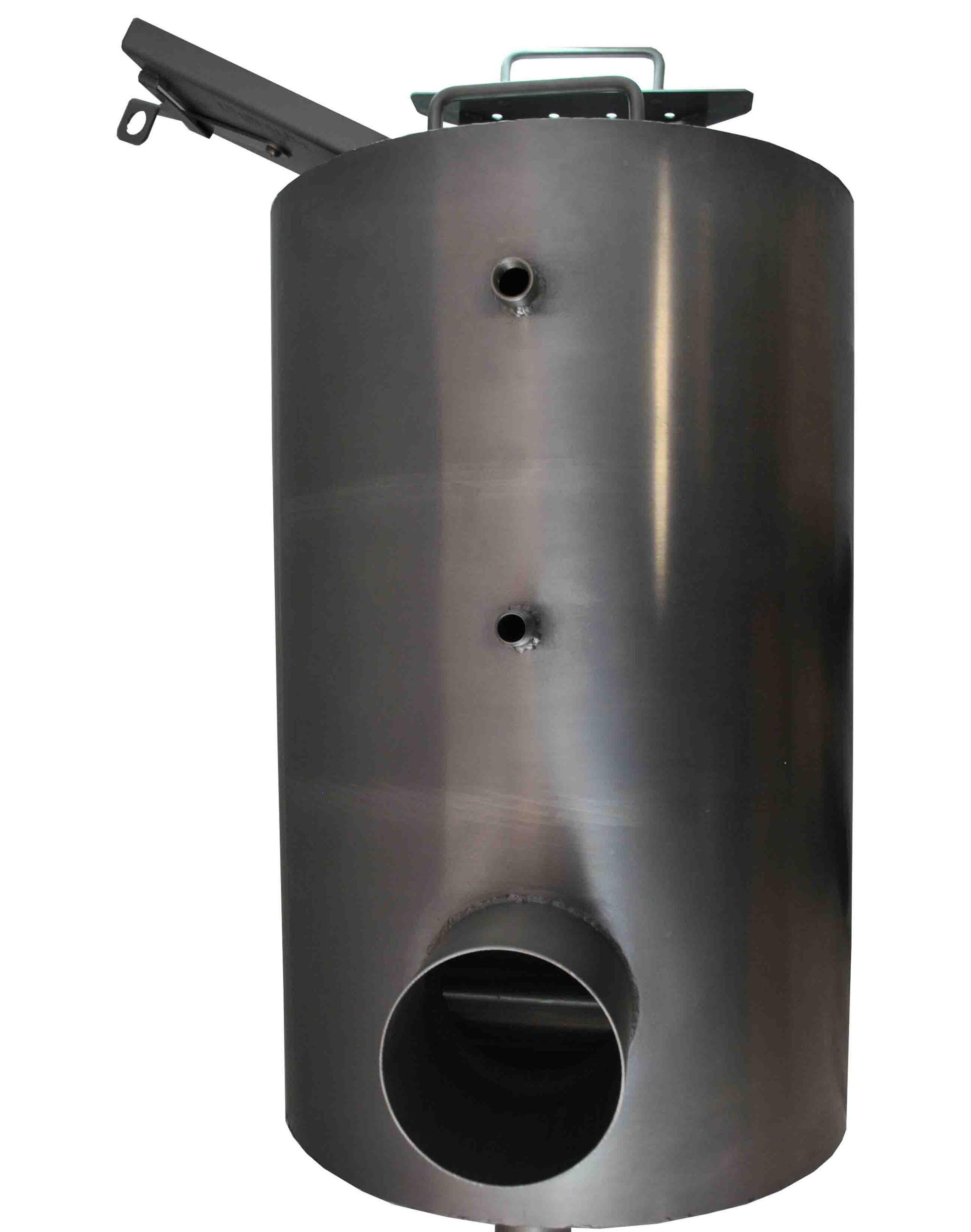

Top View

Top View

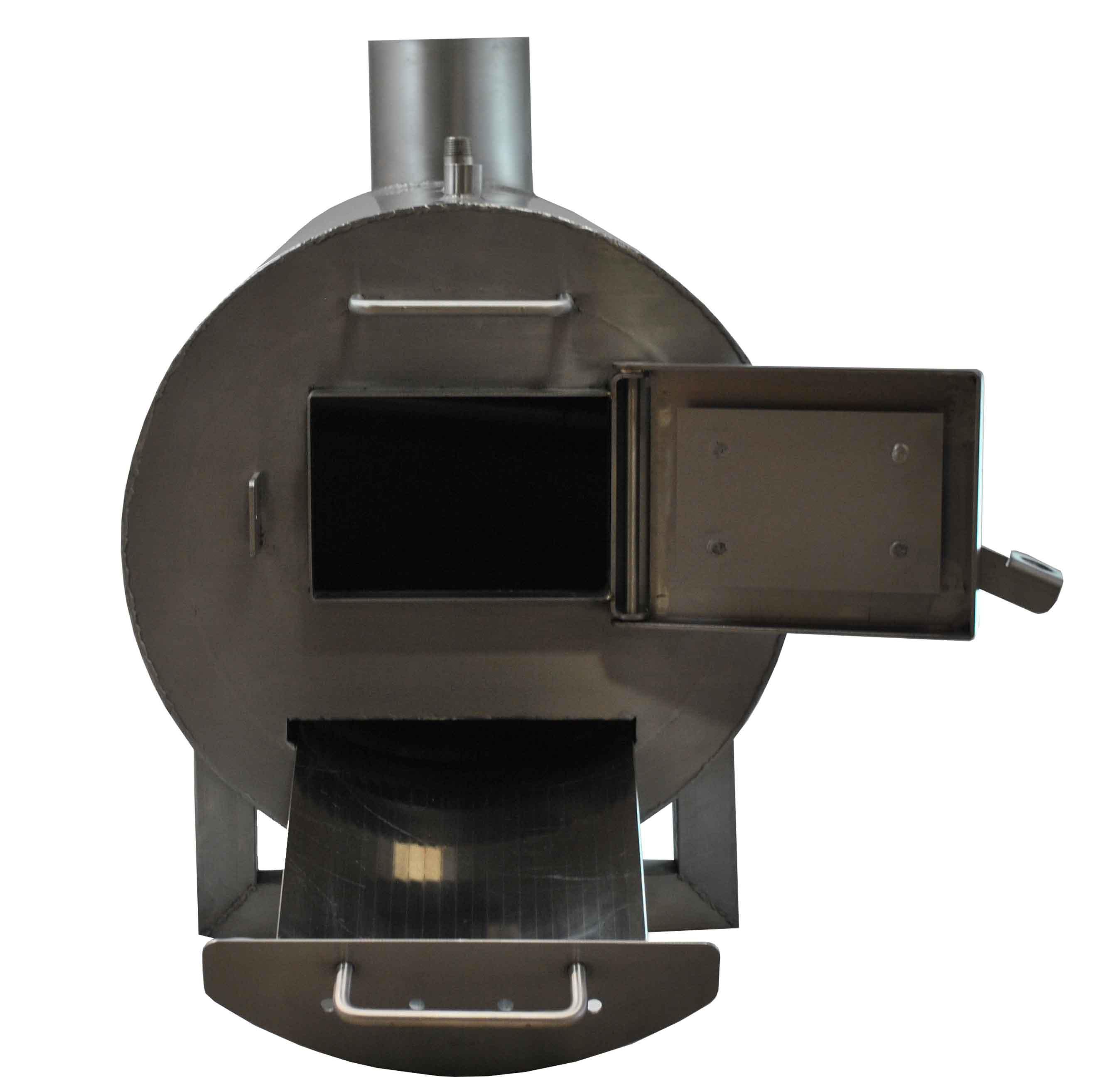

Front View

Front View

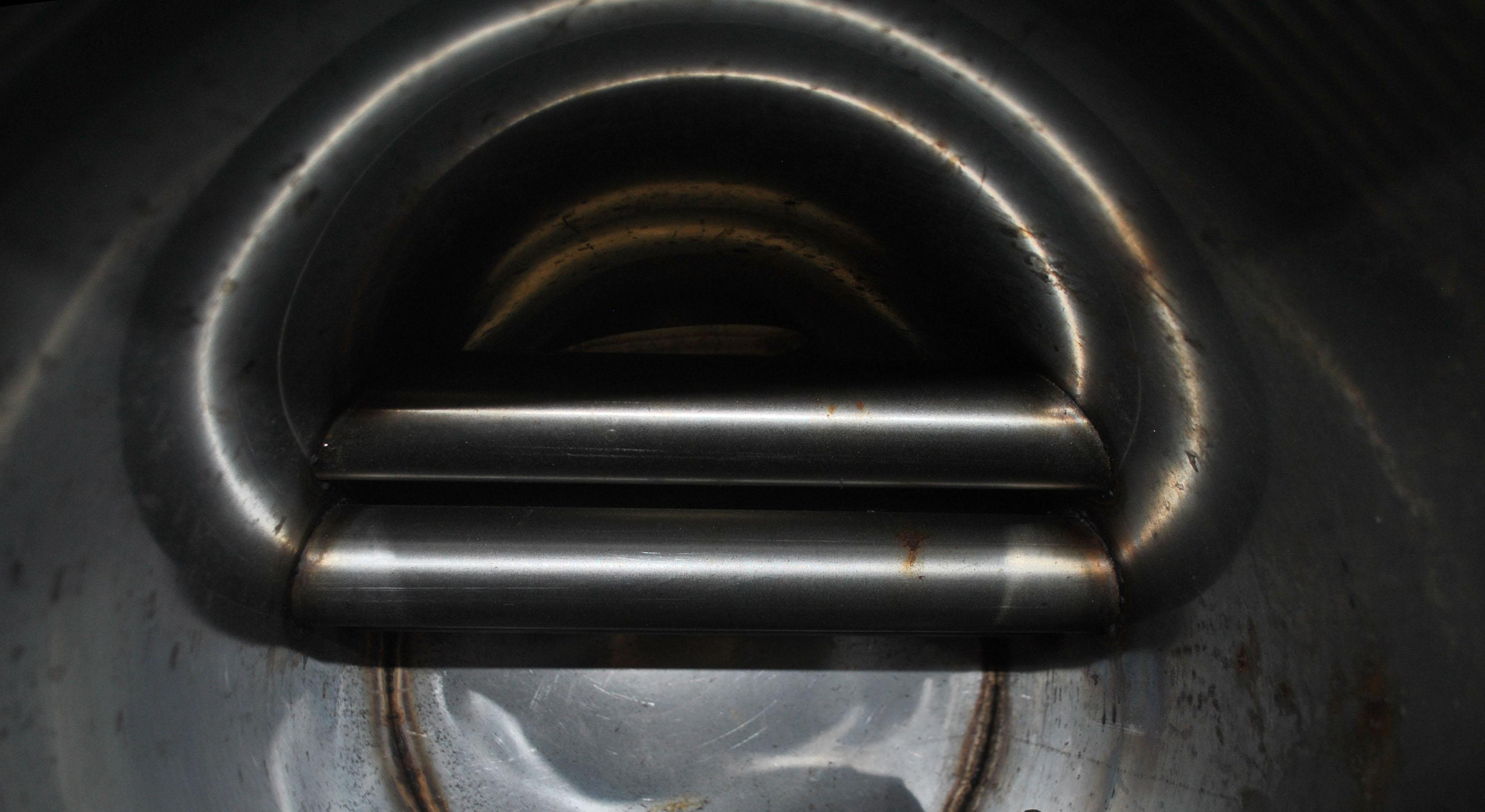

Inside Baffles

Inside Baffles



(click to enlarge)
