External Wood Fired Pool and Hot Tub Heaters

external heater

How They Work

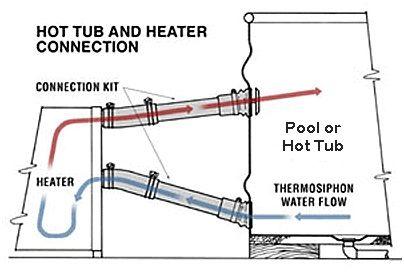

Hot Tub Heaters Connection

An External TimberLine Wood Fired Heater is an ideal way to heat a hot tub or a pool using only fire wood. Best of all there is no electricity required to circulate the water in the tub or pool! A physical principle called “thermosiphon” creates a natural convention pump that gently circulates the water through the wood fired heater.

 Thermosiphon is the result of the fact that hot water is less dense than cold water and as such rises. This is the same theory that lifts a hot air balloon. By heating the water the molecules vibrate more and spread out more and become lighter. The lighter hot water rises to the top of the tub, in replace is sucks in colder water from the bottom of the tub. The hotter the fire inside the water heater, the faster the current becomes.

The TimberLine External Pool and Hot Tub Heaters use a double walled stainless steel water jacket around a fire box. The burning fire inside the vessels heats the water indirectly surrounding the fire. The hotter water then rises out the back top port into the pool or tub and the cold water is sucked in through the bottom port from the pool. The hotter the fire inside the fire chamber the faster the water will be heated.

The TimberLine External Heaters, control the rate of burn by controlling the amount of oxygen to the fire. Reducing the air flow to the fire by closing the door and the chimney damper will determine how hot wood fire burns inside the heater.

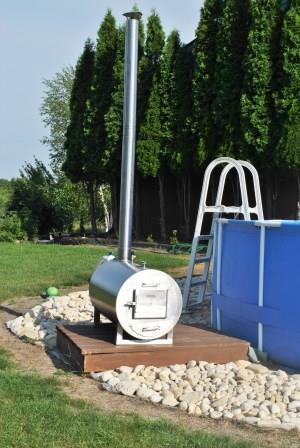

Example of External Wood Hot Tub Heater



Example of External Wood Hot Tub Heater

Pros and Cons

Pros

  • Clean – no wood debris ends up in the tub as you do not load fire wood from inside the tub
  • More Internal Space – all the internal room in the hot tub or pool can be used
  • Full Cover – a full cover can be used which allow the tub to retain the heat when not in use so it can be used again
  • No smoke or ashes – the chimney sits away from the bathers and as such is less likely to create any irritation from smoke to the bathers

Cons

  • Through ports required- requires ports in the tub or pool if thermosiphon is to be used
  • Some heat loss to the surrounding air
  • Need to exit the tub to adjust or reload the fire

External Heater Models

  • Blaze

    Blaze

    Material: AISI 430 Stainless Steel (2-3mm)

    Dimensions: 750x 480 (29.5” x 18.9”)

    Weight: 50 Kg (110 lbs.)

    Fire Box Internal:

    Large - 31 ¼" x 19 ¼"

    Medium - 28" x 14 1/2"

    Small - 24 ¾" x 13"

    Power Rating: 16Kw (55,000 BTU)

    Includes: Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve


    Buy Now

  • BonFire

    BonFire

    Material: Aluminum

    Dimensions: 732 x 466 x 491 H (28.8” x 18.3” x 19.3” ) H x L x W

    Weight: 30 Kg (66 lbs.)

    Fire Box Internal: 22 ½" 16" and 10"

    Power Rating: 20 Kw (70,000 BTU)

    Includes: Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve


    Buy Now

  • CampFire

    CampFire

    Material: AISI 430 Stainless Steel (2-3mm)

    Dimensions: 670 x 430 (26.375” x 17”)

    Weight: 40 Kg (88 lbs.)

    Fire Box Internal:

    Large - 31 ¼" x 19 ¼"

    Medium - 28" x 14 1/2"

    Small - 24 ¾" x 13"

    Power Rating: 10 Kw (34,000 BTU)

    Includes: Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve


    Buy Now

  • Inferno

    Inferno

    Material: AISI 430 Stainless Steel (2-3mm)

    Dimensions: 950 x 600 (37.4” x 23.6”)

    Weight: 100 Kg (220 lbs.)

    Fire Box Internal:

    Large - 31 ¼" x 19 ¼"

    Medium - 28" x 14 1/2"

    Small - 24 ¾" x 13"

    Power Rating: 30 Kw (100,000 BTU)

    Includes: Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve


    Buy Now

  • Volcano

    Volcano

    Material: Aluminum

    Dimensions: 970 x 695 x 295 H (38.2” x 27.4” x 11.6” ) H x L x W

    Weight:  30 Kg (66 lbs.)

    Fire Box Internal:

    Power Rating: 30 Kw (100,000 BTU)

    Includes: Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve


    Buy Now
