Blaze - Thermosiphon

C$2,876.00

  • Product Code: PKG-TIMBERLINE-BLAZE
  • Availability: 2

Optional Accessories

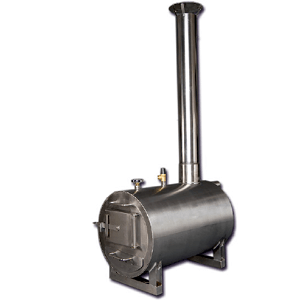

The Blaze is the medium of the external stainless wood burning heaters and is ideal for medium sized hot tubs or pools.

Balze

Feature

The Blaze is the medium of the external stainless wood burning heaters and is ideal for medium sized hot tubs or pools. The Blaze is made of AISI 430 Stainless steel and includes 3 lengths of chimney totaling 9 feet plus a stainless steel rain cap. A stainless steel flue adjustment in the chimney allows you to accurately control the fire. Interior fire box contains water baffles for extra heat transfer as well as cast iron wood grate. Easy to clean ash tray is also used to remove ashes and add extra air ventilation during operation. With a heat up time of 55,000 BTU this will quickly heat any hot tub or small pool. An internal water temperature probe allows you to quickly read the operating water temp and make adjustments.

Material AISI 430 Stainless Steel (2-3mm)
Dimensions 750x 480 (29.5” x 18.9”)
Weight 50 Kg (110 lbs.)
Fire Box Internal: Fire Box - 31 ¼" x 19 ¼", Fire Box - 28" x 14 1/2", Fire Box - 24 ¾" x 13"
Power Rating 16Kw (55,000 BTU)
Includes

Complete heater, 3 sections of stainless steel stove pipe, rain cap, internal temperature gauge, cast iron grates, Pressure release valve, ½” drain valve

Includes thermosiphon kit which allows for the natural circulation of water from hot tub. NO PUMP is used

Gallery Item 1
Gallery Item 2
Gallery Item 3
Gallery Item 4
Gallery Item 5
Gallery Item 6
Gallery Item 7
Gallery Item 8



 Thermosiphon Kit Includes:

• 6' of 1.5" CPVC pipe
• 2x silicone couplers
• 2x silicone elbows
• 2x wall fittings
• 2x 1.5" gate valves
• 8x stainless steel clamps

 Thermosiphon Kit

SPECIFICATIONS

Exterior Wood Water Stove Specifications

Small - Camp Fire Med - Blaze Large - Inferno
BTU/hour (Kw/hr) 35,000 (10 KW/hr) 55,000 (16 KW/hr) 105,000 (30 KW/hr)
Dimensions 670x430 (26.5" x 17") 750x480 (29.5"x19") 950x600 (37.5"x23.5")
Fire Box (length) 630 (24.8") 710 (27.9")  910 (35.8")
Thickness 2-3 mm 2-3 mm  2-3 mm
Material AISI 304 Stainless AISI 304 Stainless  AISI 304 Stainless
Chimney Size 5" 5"  5"
Pipe Connections 1 1/2" 1 1/2" 1 1/2"
Max operating Pressure 8 PSI 8 PSI 11 PSI
